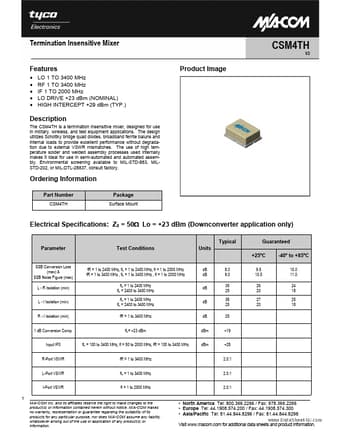

CSM4TH Datasheet, Mixer, Tyco Electronics

✔ CSM4TH Features

LO 1 TO 3400 MHz RF 1 TO 3400 MHz IF 1 TO 2000 MHz LO DRIVE +23 dBm (NOMINAL) HIGH INTERCEPT +29 dBm (TYP.) Product Image Description The CSM4TH is a terminat

✔ CSM4TH Application

The design utilizes Schottky bridge quad diodes, broadband ferrite baluns and internal loads to provide exc

PDF File Details

Tyco Electronics manufacturer logo

Part number:

CSM4TH

Manufacturer:

Tyco Electronics

File Size:

189.39kb

Download:

📄 Datasheet

Description:

Termination insensitive mixer. The CSM4TH is a termination insensitive mixer, designed for use in military, wireless, and test equipment applications. The design ut

📥 Download PDF (189.39kb)

Rating: 1 ★ (4 votes)

📁 Related Datasheet

CSM4T - Termination Insensitive Mixer (Tyco Electronics)
