DP52-0002

Low Cost SMT Dual Band Diplexer

DP52-0002 Features

* Small Size and Low Profile Industry Standard SOIC-8 SMT Plastic Package Superior Repeatability Passbands 824 - 960 MHz and 1850 - 1990 MHz Passbands 880 - 960 MHz and 1700 - 1900 MHz Typical Passband Insertion Loss: 0.5

DP52-0002 General Description

M/A-COM’s DP52-0002 is an IC-based monolithic diplexer in a low cost SOIC-8 SMT plastic package. This diplexer is ideally suited for applications where small size, low insertion loss, superior repeatability and low cost are required. Typical applications include AMPS/PCS and GSM/DCS dual mode portab.

DP52-0002 Datasheet (142.75 KB)

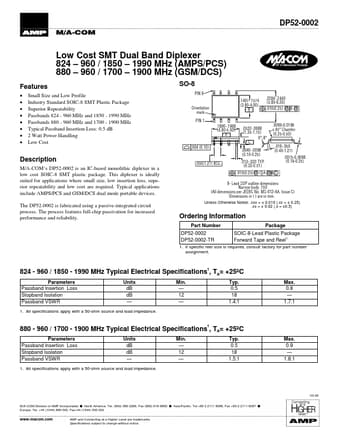

Preview of DP52-0002 PDF

Datasheet Details

Part number:

DP52-0002

Manufacturer:

Tyco Electronics

File Size:

142.75 KB

Description:

Low cost smt dual band diplexer.
Low Cost SMT Dual Band Diplexer DP52-0002 DP52-0002 Low Cost SMT Dual Band Diplexer 824

* 960 / 1850

* 1990 MHz (AMPS/PCS) 880
.
