DP500

PNP Silicon Transistor

DP500 General Description



* Extremely low collector-to-emitter saturation voltage ( VCE(SAT)=-0.2V Typ. @IC /IB =-3A/-150mA)

* Suitable for low voltage large current drivers

* Excellent hFE Linearity

* Complementary pair with DN500 Ordering Information Type NO. DP500 Marking DP500 Package Co.

DP500 Datasheet (51.66 KB)

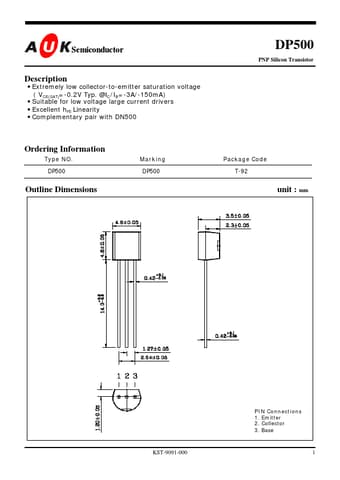

Preview of DP500 PDF

Datasheet Details

Part number:

DP500

Manufacturer:

AUK

File Size:

51.66 KB

Description:

Pnp silicon transistor.
