M51C TRIPLE-BALANCED MIXER

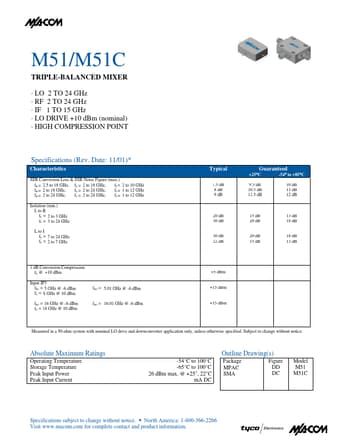

M51/M51C TRIPLE-BALANCED MIXER LO 2 TO 24 GHz RF 2 TO 24 GHz IF 1 TO 15 GHz LO DRIVE +10 dBm (nominal) HIGH COMPRESSION POINT Specifications (Rev. Date: 11/01) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 2.5 to 18 GHz, fL = 2 to 18 GHz, fI = 2 to 10 GHz fR = 2 to 18 GHz, fL = 2 to 24 GHz, fI = 1 to 12 GHz fR = 2 to 24 GHz, fL = 2 to 24 GHz, fI = 1 to 12 GHz fR = fL = fI = Isolation (min.) L to R fL = 2 to 3 GHz fL = 3 to 24 GHz fL = L to.
