MAAL-008624 - High Dynamic Range Low Noise Amplifier

Description

M/A-COM’s MAAL-008624 is a high dynamic range, low noise GaAs MMIC amplifier in a low cost, surface mount package.

It employs external input matching to obtain optimum noise figure performance and operating frequency flexibility.

Features

  • Low Noise Figure: 0.9 dB High OIP3: +28 dBm at 5 V, 60 mA bias High Gain: 21 dB Single Supply: +3 to +8 VDC Lead-Free SOIC-8 Package 100% Matte Tin Plating over Copper Halogen-Free “Green” Mold Compound 260°C Reflow Compatible RoHS.
  • Compliant Version of MAALSS0025 Adjustable current: 20 to 80 mA with external resistor MAAL-008624 V1 Functional Block Diagram GND GND REXT VDD RF IN RF OUT.

📥 Download Datasheet

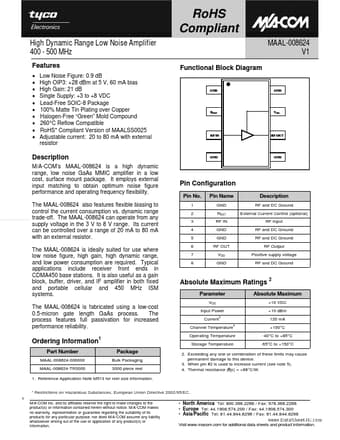

Datasheet preview – MAAL-008624
