MAAM000057, MAAM-000057 Datasheet - Tyco Electronics

MAAM000057 RF Driver Amplifier

M/A-COM’s MAAMSS0057 RF driver amplifier is a two stage GaAs MMIC which exhibits exceptional linearity performance as well as featuring high gain in a lead-free SOIC-8EP surface mount plastic package. The device runs off a single +5 volt supply and draws 490 mA typically. The MAAMSS0057 is fabricate.

MAAM000057 Features

* Broadband Operation

* Output Intercept Point Greater than +45 dBm

* Excellent ACPR performance

* High Efficiency

* Lead-Free SOIC-8EP Package

* 100% Matte Tin Plating over Copper

* Halogen-Free “Green” Mold Compound

* RoHS

* Compli

MAAM-000057_TycoElectronics.pdf

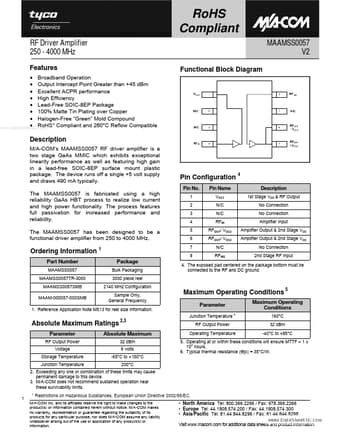

MAAM000057 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAAM000057, MAAM-000057. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAAM000057, MAAM-000057

Manufacturer:

Tyco Electronics

File Size:

233.31 KB

Description:

Rf driver amplifier.

Note:

This datasheet PDF includes multiple part numbers: MAAM000057, MAAM-000057.
Please refer to the document for exact specifications by model.
