MABA-007236-C16423, E-Series RF 1:4 Transmission Line Step-up Transformer

www.DataSheet4U.com RoHS Compliant MABA-007236-C16423 V1 P E-Series RF 1:4 Transmission Line Step-up Transformer 500 * 2500 MHz .
M/A-COM’s MABA-007236-C16423 is a RoHS compliant 1:4 RF transmission line step-up transformer in a low cost, surface mount package.

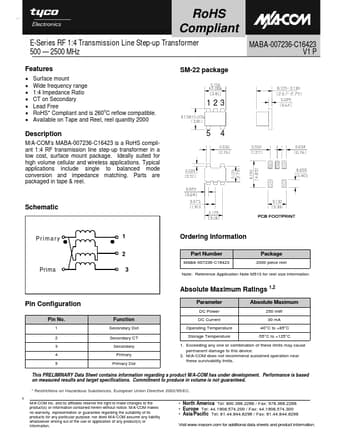

datasheet Preview Page 1 from Datasheet4u.com

MABA-007236-C16423_TycoElectronics.pdf

MABA-007236-C16423 Datasheet Preview — Preview of MABA-007236-C16423 PDF

Datasheet Details

Part number:

MABA-007236-C16423

Manufacturer:

Tyco Electronics

File Size:

182.11 KB

Description:

E-Series RF 1:4 Transmission Line Step-up Transformer

Features

* Surface mount Wide frequency range 1:4 Impedance Ratio CT on Secondary Lead Free RoHS

Applications

* Typical applications include single to balanced mode conversion and impedance matching. Parts are packaged in tape & reel. 5 4 Schematic Primary 1 2 Ordering Information Part Number MABA-007236-C16423 Package 2000 piece reel Prima 3 Note: Reference Application Note M513 for reel size info
