MRF428 Datasheet - Tyco Electronics

MRF428 The RF Line NPN Silicon RF Power Transistor

SEMICONDUCTOR TECHNICAL DATA Order this document by MRF428/D The RF Line NPN Silicon RF Power Transistor MRF428 Designed primarily for high-voltage applications as a high-power linear amplifier from 2.0 to 30 MHz. Ideal for marine and base station equipment. Specified 50 Volt, 30 MHz Characteristics Output Power = 150 W (PEP) Minimum Gain = 13 DB Efficiency = 45% Intermodulation Distortion @ 150 W (PEP) IMD = -32 db (Max) 100% Tested for Loa.

MRF428_TycoElectronics.pdf

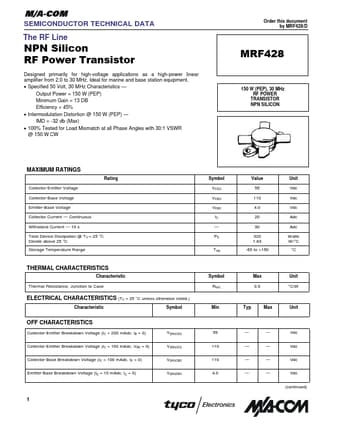

Preview of MRF428 PDF
MRF428 Datasheet Preview Page 2 MRF428 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF428

Manufacturer:

Tyco Electronics

File Size:

628.32 KB

Description:

The rf line npn silicon rf power transistor.
