MY76HC DOUBLE-BALANCED MIXER

MY76H/MY76HC DOUBLE-BALANCED MIXER LO 2.5 TO 11.5 GHz RF 4.5 TO 9.5 GHz IF DC TO 2.0 GHz LO DRIVE +20 dBm (nominal) HIGH THIRD-ORDER I.P. +24 dBm (TYP.) Specifications (Rev. Date: 10/01) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 4.5 to 8 GHz, fL = 2.5 to 10 GHz, fI = 0.03 to 2 GHz fR = 8 to 9 GHz, fL = 6.5 to 10.5 GHz, fI = 0.03 to 1.5 GHz fR = 8 to 9.5 GHz, fL = 6 to 11.5 GHz, fI = 0.03 to 2 GHz fR = fL = fI = Isolation (min.) L to R .

MY76HC_TycoElectronics.pdf

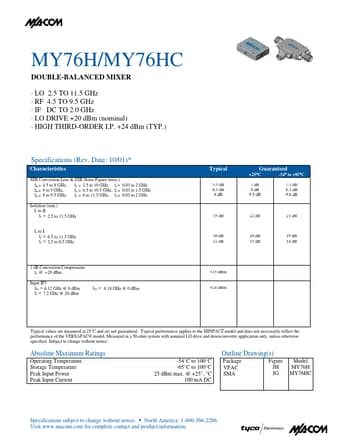

Preview of MY76HC PDF
MY76HC Datasheet Preview Page 2

Datasheet Details

Part number:

MY76HC

Manufacturer:

Tyco Electronics

File Size:

141.66 KB

Description:

Double-balanced mixer.
