MY77 DOUBLE-BALANCED MIXER

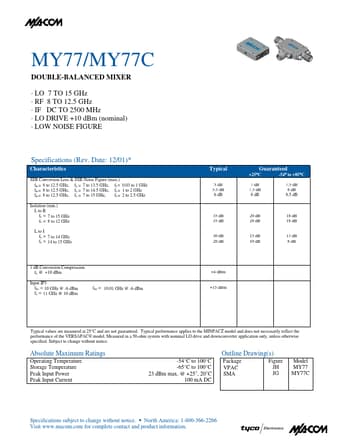

MY77/MY77C DOUBLE-BALANCED MIXER LO 7 TO 15 GHz RF 8 TO 12.5 GHz IF DC TO 2500 MHz LO DRIVE +10 dBm (nominal) LOW NOISE FIGURE Specifications (Rev. Date: 12/01) Characteristics SSB Conversion Loss & SSB Noise Figure (max.) fR = 8 to 12.5 GHz, fL = 7 to 13.5 GHz, fI = 0.03 to 1 GHz fR = 8 to 12.5 GHz, fL = 7 to 14.5 GHz, fI = 1 to 2 GHz fR = 8 to 12.5 GHz, fL = 7 to 15 GHz, fI = 2 to 2.5 GHz fR = fL = fI = Isolation (min.) L to R fL = 7 to 15 GHz fL = 8 to 12 G.
