SMA19-1 Datasheet - Tyco Electronics

SMA19-1 10 TO 1000 MHz CASCADABLE AMPLIFIER

A19-1/SMA19-1 10 TO 1000 MHz CASCADABLE AMPLIFIER HIGH OUTPUT POWER: +22.5 dBm (TYP.) HIGH THIRD ORDER I.P.: +35 dBm (TYP.) MEDIUM NOISE FIGURE: 6.0 dB (TYP.) Typical Performance @ 25°C Specifications (Rev. Date: 11/00) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 50°C Guar.

SMA19-1_TycoElectronics.pdf

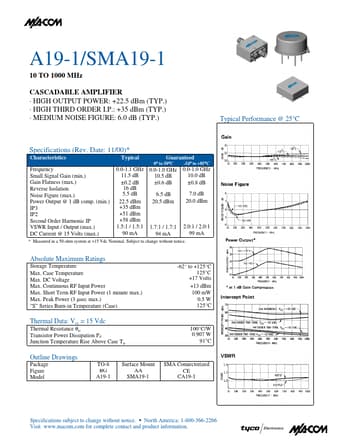

Preview of SMA19-1 PDF

Datasheet Details

Part number:

SMA19-1

Manufacturer:

Tyco Electronics

File Size:

110.91 KB

Description:

10 to 1000 mhz cascadable amplifier.
