SW-283 - GaAs Transfer Switch

Tyco Electronics

📥 Download Datasheet

SW-283 Datasheet Preview — Preview of SW-283 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SW-283
Manufacturer	Tyco Electronics
File Size	93.70 KB
Description	GaAs Transfer Switch
Datasheet	SW-283_TycoElectronics.pdf

SW-283 Product details

Features

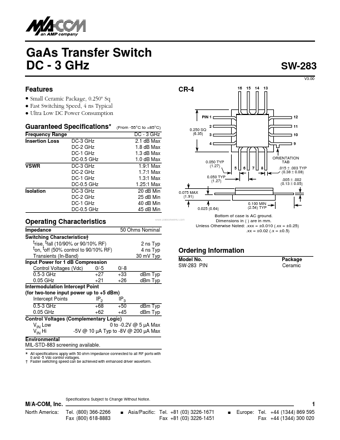

q q q SW-283 V3.00 CR-4 16 15 14 13 Small Ceramic Package, 0.250" Sq Fast Switching Speed, 4 ns Typical Ultra Low DC Power Consumption (From -55°C to +85°C) PIN 1 2 0.250 SQ (6.35) 3 4 12 11 10 9 Guaranteed Speciﬁcations.
Frequency Range Insertion Loss DC-3 GHz DC-2 GHz DC-1 GHz DC-0.5 GHz VSWR DC-3 GHz DC-2 GHz DC-1 GHz DC-0.5 GHz Isolation DC-3 GHz DC-2 GHz DC-1 GHz DC-0.5 GHz DC - 3 GHz 2.1 dB Max 1.8 dB Max 1.3 dB Max 1.0 dB Max 1.9:1 Max 1.7:1 Max 1.3:1 Max 1.25:1 Max 20 dB M.
