SW-277 Datasheet, Switch, MA-COM

SW-277 Features

• Switch
• Positive Supply and Control Voltages
• 1 dB Compression Point: +36 dBm Typical, 8 V
• 3rd Order Intercept Point: +65 dBm Typical, 8 V
• Low Insertion L

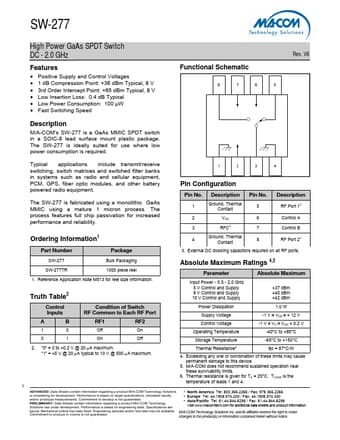

PDF File Details

Part number:

SW-277

Manufacturer:

MA-COM

File Size:

127.07kb

Download:

📄 Datasheet

Description:

High power gaas spdt switch. M/A-COM’s SW-277 is a GaAs MMIC SPDT switch in a SOIC-8 lead surface mount plastic package. The SW-277 is ideally suited for use wher

SW-277 Application

• Applications include transmit/receive switching, switch matrices and switched filter banks in systems such as radio and cellular equipment, PCM, GPS
