SW-311 Datasheet, Switch, Tyco Electronics

SW-311 Features

• Switch n Integral TTL Driver n Ultra Low Power Consumption n Fast Switching Speed: 4 ns Typical n Surface Mount Package n 50 Ohm Nominal Impedance n MIL-STD-883 Screening Available CR-9 Desc

PDF File Details

Part number:

SW-311

Manufacturer:

Tyco Electronics

File Size:

227.46kb

Download:

📄 Datasheet

Description:

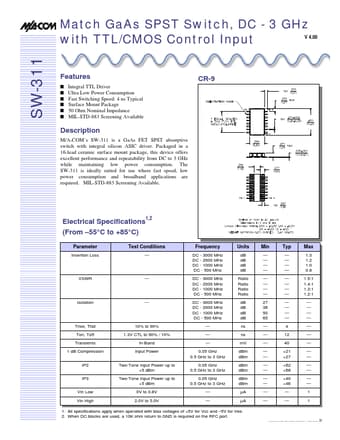

Match gaas spst switch. M/A-COM’s SW-311 is a GaAs FET SPST absorptive switch with integral silicon ASIC driver. Packaged in a 16-lead ceramic surface mount

SW-311 Application

• Applications are required. MIL-STD-883 Screening Available. Electrical Specifications1,2 (From
    –55°C to +85°C) Parameter Insertion
