FW300H1

Power Modules

FW300H1 Features

* The FW250H1 and FW300H1 Power Modules use advanced, surface-mount technology and deliver high-quality, compact, dc-dc conversion at an economical price. Applications s Redundant and distributed power architectures s Computer Equipment s Communications equipment Options s Heat sink available for ext

FW300H1 General Description

s Size: 61.0 mm x 116.8 mm x 13.5 mm (2.40 in. x 4.60 in. x 0.53 in.) s Wide input voltage range s High efficiency: 89% typical s Parallel operation with load sharing s Output voltage set-point adjustment (trim) s Thermal protection s Synchronization s Power good signal s Current monitor s Output o.

FW300H1 Datasheet (525.39 KB)

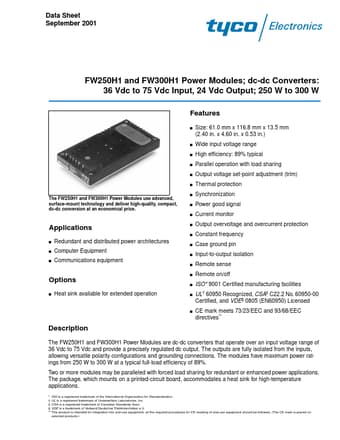

Preview of FW300H1 PDF

Datasheet Details

Part number:

FW300H1

Manufacturer:

Tyco

File Size:

525.39 KB

Description:

Power modules.
