MA44622A

Step Recovery Diodes

Tyco

MA44622A Features

* q q q MA43000, MA44600, MA44700 Series V3.00 q Low Transition Times Tight Capacitance Ranges High Voltage and Low Thermal Resistance for Higher Input Power Surface Mount Package Available (SOT-23) Description The MA44600 series of Step Recovery diodes is designed for use in low and moderate powe

MA44622A General Description

The MA44600 series of Step Recovery diodes is designed for use in low and moderate power multipliers with output frequencies of up to 20 GHz. These Step Recovery diodes generate harmonics by storing a charge as the diode is driven to forward conductance by the positive voltage of the input signal. W.

MA44622A Datasheet (77.33 KB)

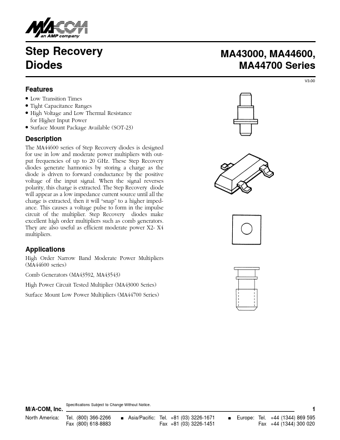

MA44622A Datasheet Preview — Preview of MA44622A PDF

Datasheet Details

Part number:

MA44622A

Manufacturer:

Tyco

File Size:

77.33 KB

Description:

Step recovery diodes.
