MA44600 - Silicon Step Recovery Diodes

Tyco Electronics

📥 Download Datasheet

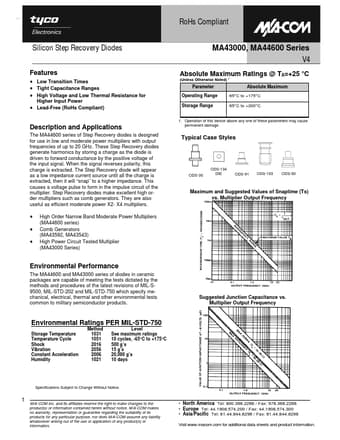

MA44600 Datasheet Preview — Preview of MA44600 PDF

Datasheet Details

Part number: MA44600
Manufacturer: Tyco Electronics
File Size: 470.69 KB
Datasheet: MA44600_TycoElectronics.pdf
Description: Silicon Step Recovery Diodes

MA44600 Product details

Description

and Applications The MA44600 series of Step Recovery diodes is designed for use in low and moderate power multipliers with output frequencies of up to 20 GHz.These Step Recovery diodes generate harmonics by storing a charge as the diode is driven to forward conductance by the positive voltage of the input signal.When the signal reverses polarity, this charge is extracted.The Step Recovery diode will appear as a low impedance current source until all the charge is extracted, then it will “snap

Features

Low Transition Times.
Tight Capacitance Ranges.
High Voltage and Low Thermal Resistance for Higher Input Power.
Lead-Free (RoHs Compliant) Parameter Operating Range Storage Range Absolute Maximum -65°C to +175°C -65°C to +200°C.
