MAAPSM0015 Datasheet, Amplifier, Tyco

MAAPSM0015 Features

  • Amplifier ¢ ¢ ¢ ¢ ¢ ¢ ¢ DC-20 GHz GaAs MMIC Amplifier Wide Frequency Range: DC-20 GHz On Chip Bias Network High Gain : 11 dB Gain Flatness: + 0.75 dB Typical Psat: 21 dBm Return Loss: 12 dB Low

PDF File Details

Part number:

MAAPSM0015

Manufacturer:

Tyco

File Size:

158.99kb

Download:

📄 Datasheet

Description:

Dc-20 ghz gaas mmic amplifier. The M/A-COM MAAPSM0015 is a medium power wideband AGC amplifier that typically provides 11 dB of gain with 25 dB of AGC range. The ci

Datasheet Preview: MAAPSM0015 📥 Download PDF (158.99kb)

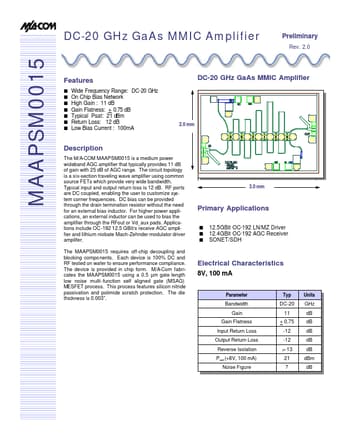

Page 2 of MAAPSM0015 Page 3 of MAAPSM0015

MAAPSM0015 Application

  • Applications an external inductor can be used to bias the amplifier through the RFout or Vd_aux pads. Applications include OC-192 12.5 GBit/s recei
