MAAPSS0003 Datasheet, Mhz, Tyco

MAAPSS0003 Features

  • Mhz
  • High Gain 2-stage HBT Amplifier Single Supply, 3V Operation 29dBm Linear Output Power High Efficiency Low Quiescent

PDF File Details

Part number:

MAAPSS0003

Manufacturer:

Tyco

File Size:

37.95kb

Download:

📄 Datasheet

Description:

Pcs tdma/cdma power amplifier 1750 - 1910 mhz. M/A-COM’s MAAPSS0003 is a high power, high efficiency linear power amplifier in a miniature FQFP-N 4mm plastic package. The MAAPSS000

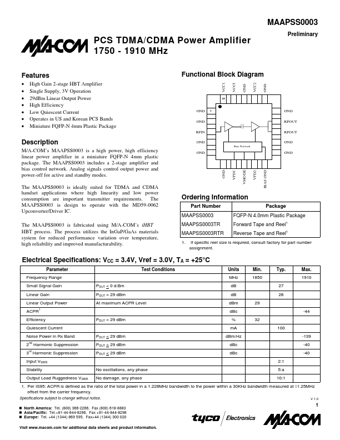

Datasheet Preview: MAAPSS0003 📥 Download PDF (37.95kb)
Page 2 of MAAPSS0003 Page 3 of MAAPSS0003

MAAPSS0003 Application

  • Applications where high linearity and low power consumption are important transmitter requirements. The MAAPSS0003 is design to operate with the MD5
