P40P42A12P1-120 - Definite Purpose Magnetic Contactor

Product Overview

Tyco

Part number	P40P42A12P1-120
Manufacturer	Tyco
File Size	146.72 KB
Description	Definite Purpose Magnetic Contactor
Datasheet	P40P42A12P1-120 Datasheet
Note	This datasheet PDF includes multiple part numbers: P40P42A12P1-120, P40. Please refer to the document for exact specifications by model.

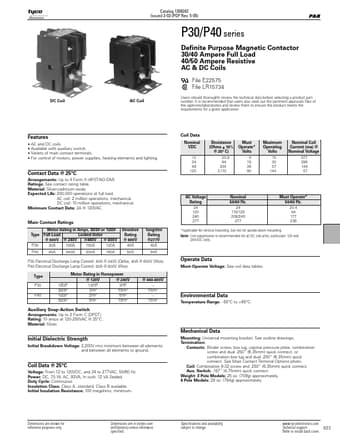

Additional preview pages of the P40P42A12P1-120 datasheet.

AC and DC coils.
Available with auxiliary switch.
Variety of main contact terminals.
For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate.
Volts 9 18 36 90 Maximum Operating Volts 15 30 57 144 Nominal Coil Current (ma) @ Nominal Voltage 577 286 144 57 Contact Data @ 25°C Arrangements: Up to 4 Form X (4PST-NO-DM) Ratings: See contact rati.
