P4000MC, P4000SC - Thyristors Solid Protection Device Bidirectional transient voltage suppressors

P4000MC Description

PxxxxSC MC Series Thyristors Solid Protection Device PxxxxSC MC Series Thyristors Solid Protection Device Bidirectional transient voltage suppressors.

P4000MC Applications

* to optimize board space
* Low profile package
* Bidirectional crowbar protection
* Low leakage current : I = 5uA max
* Low on-state voltage
* Low Capacitance
* Response Time is < 1us
* YD/T 950 IEC 61000-4-5
* YD/T 993 ITU K.20/21
* YD/T 1082 TIA-968-A
* GR 10

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P4000MC, P4000SC. Please refer to the document for exact specifications by model.

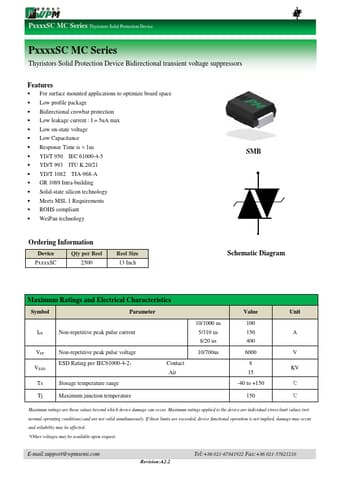

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P4000MC, P4000SC
Manufacturer
WPM
File Size
362.64 KB
Datasheet
P4000SC-WPM.pdf
Description
Thyristors Solid Protection Device Bidirectional transient voltage suppressors
Note
This datasheet PDF includes multiple part numbers: P4000MC, P4000SC.
Please refer to the document for exact specifications by model.
