QM04N60F

MOSFETs

QM04N60F Features

* z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 600V RDSON 2.0 Ω ID 4A Applications z High efficient switched mode power supplies z Electronic lamp ballast z LCD TV/ Monitor z Adapter TO220F Pin Configuration Absolu

QM04N60F General Description

The QM04N60F is the highest performance N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM04N60F meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability .

QM04N60F Datasheet (319.18 KB)

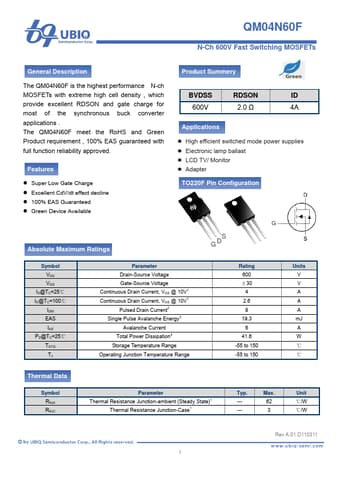

Preview of QM04N60F PDF

Datasheet Details

Part number:

QM04N60F

Manufacturer:

UBIQ

File Size:

319.18 KB

Description:

Mosfets.
