QM0004G Datasheet - UBIQ

QM0004G N-Ch 100V Fast Switching MOSFETs

The QM0004G is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The QM0004G meet the RoHS and Green Product requirement with full function reliability approve.

QM0004G Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Absolute Maximum Ratings Product Summery BVDSS 100V RDSON 112mΩ ID 2.5A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMP

QM0004G-UBIQ.pdf

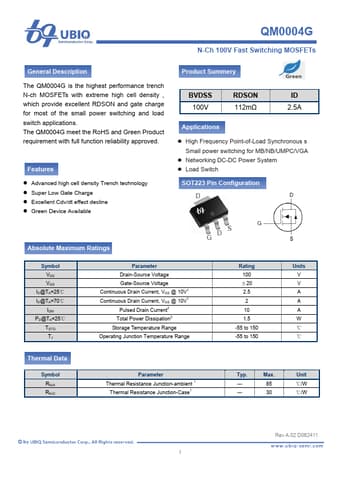

Preview of QM0004G PDF
QM0004G Datasheet Preview Page 2 QM0004G Datasheet Preview Page 3

Datasheet Details

Part number:

QM0004G

Manufacturer:

UBIQ

File Size:

325.53 KB

Description:

N-ch 100v fast switching mosfets.
