QM0004S Datasheet - UBIQ

QM0004S N-Ch 100V Fast Switching MOSFETs

The QM0004S is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM0004S meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabi.

QM0004S Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 100V RDSON 112mΩ ID 2.5A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMPC/VGA z Networking DC-DC

QM0004S-UBIQ.pdf

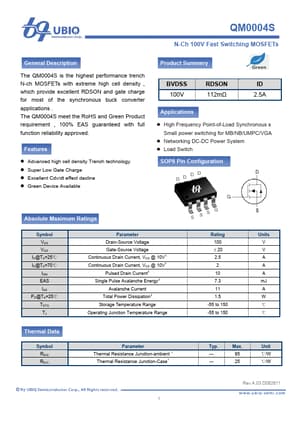

Preview of QM0004S PDF
QM0004S Datasheet Preview Page 2 QM0004S Datasheet Preview Page 3

Datasheet Details

Part number:

QM0004S

Manufacturer:

UBIQ

File Size:

337.85 KB

Description:

N-ch 100v fast switching mosfets.
