QM4013S

P-Ch 40V Fast Switching MOSFETs

UBIQ

QM4013S Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS -40V RDSON 40mΩ ID -7.5A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Netw

QM4013S General Description

The QM4013S is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM4013S meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabi.

QM4013S Datasheet (315.75 KB)

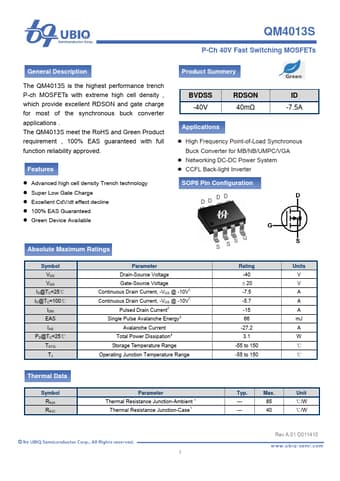

QM4013S Datasheet Preview — Preview of QM4013S PDF

Datasheet Details

Part number:

QM4013S

Manufacturer:

UBIQ

File Size:

315.75 KB

Description:

P-ch 40v fast switching mosfets.
