QM4014D

N-Ch 40V Fast Switching MOSFETs

QM4014D Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 40V RDSON 17mΩ ID 33A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Network

QM4014D General Description

The QM4014D is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM4014D meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabi.

QM4014D Datasheet (359.62 KB)

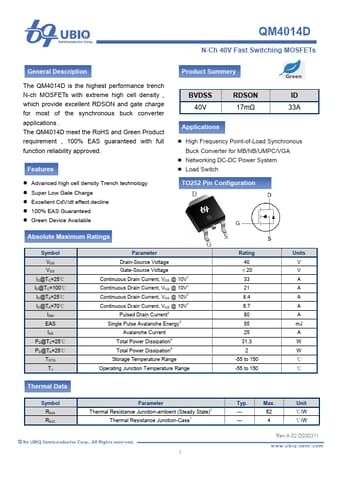

Preview of QM4014D PDF

Datasheet Details

Part number:

QM4014D

Manufacturer:

UBIQ

File Size:

359.62 KB

Description:

N-ch 40v fast switching mosfets.
