UM66T04S - Simple Melody Generator

Product Overview

UMC

📥 Download Datasheet

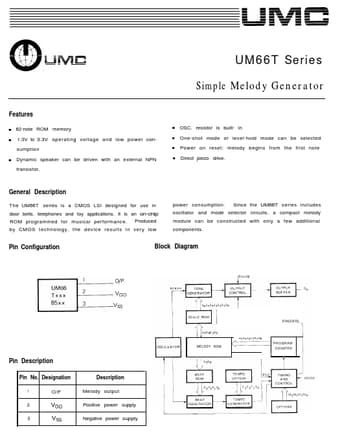

UM66T04S Simple Melody Generator by UMC - Datasheet Preview — Datasheet preview – UM66T04S

Datasheet Details

Part number	UM66T04S
Manufacturer	UMC
File Size	96.89 KB
Description	Simple Melody Generator
Datasheet	UM66T04S Datasheet
Note	This datasheet PDF includes multiple part numbers: UM66T04S, UM66T01L. Please refer to the document for exact specifications by model.
Additional preview pages of the UM66T04S datasheet.

Product details

Description

The UM66T series is a CMOS LSI designed for use in door bells, telephones and toy applications.

Features

n 62-note ROM memory n 1.3V to 3.3V operating voltage and low power con- sumption n Dynamic speaker can be driven with an external NPN transistor. n OSC. resistor is built- in n One-shot mode or level-hold mode can be selected n Power on reset; melody begins from the first note n Direct piezo drive. General.
