UM66T34S, UM66T01L, Simple Melody Generator

; =_=_amcm___ * *‘_= F z-d @.UM66T Series Simple Melody Generator .

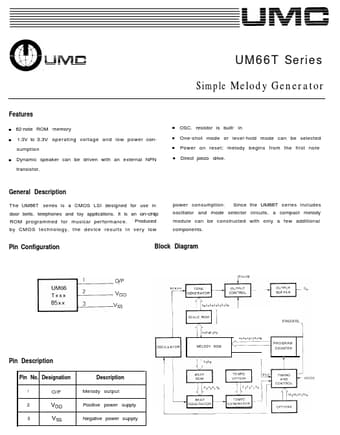

The UM66T series is a CMOS LSI designed for use in door bells, telephones and toy applications.

datasheet Preview Page 1 from Datasheet4u.com

UM66T01L-UMC.pdf

UM66T34S Datasheet Preview — This datasheet PDF includes multiple part numbers: UM66T34S, UM66T01L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UM66T34S, UM66T01L

Manufacturer:

UMC

File Size:

96.89 KB

Description:

Simple Melody Generator

Note:

This datasheet PDF includes multiple part numbers: UM66T34S, UM66T01L.
Please refer to the document for exact specifications by model.

Features

* n 62-note ROM memory n 1.3V to 3.3V operating voltage and low power con- sumption n Dynamic speaker can be driven with an external NPN transistor. n OSC. resistor is built- in n One-shot mode or level-hold mode can be selected n Power on reset; melody begins from the first note n Direct piezo drive

Applications

* It is an on-chip ROM programmed for musical performance. Produced by CMOS technology, the device results in very low power consumption. Since the UM66T series includes oscillator and mode selector circuits, a compact melody module can be constructed with only a few additional components. Pin Conf
