UM82C01 Datasheet, Encoder, UMC

UM82C01 Features

  • Encoder
  • 16x8 matrix, can build up to 128 key capacitance keyboard
  • Single chip with 16 scan drive outputs and 8 sense inputs
  • Two types of package. 28 pin for 88 key

PDF File Details

Part number:

UM82C01

Manufacturer:

UMC

File Size:

369.75kb

Download:

📄 Datasheet

Description:

Capacitance keyboard encoder. UM82C01 is a CMOS LSI, which offers interface between microcomputer and capacitive keyboard matrix. 40 pin UM82C01-1 is capable of sc

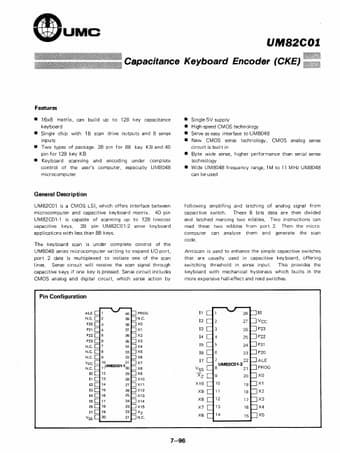

Datasheet Preview: UM82C01 📥 Download PDF (369.75kb)
Page 2 of UM82C01 Page 3 of UM82C01

UM82C01 Application

  • Applications with less than 88 keys. The keyboard scan is under complete control of the UM804
