L9110S - Motor control drive IC

L9110S Datasheet Preview — Preview of L9110S PDF

Datasheet Details

Part number	L9110S
Manufacturer	UMW
File Size	640.47 KB
Description	Motor control drive IC
Datasheet	L9110S-UMW.pdf

L9110S Product details

Description

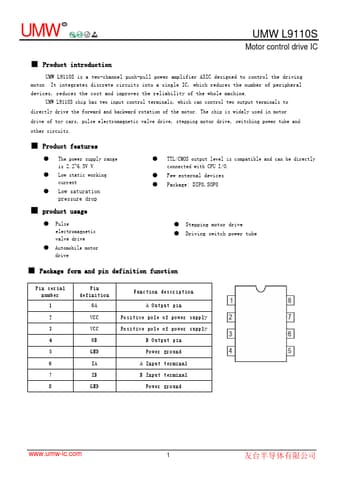

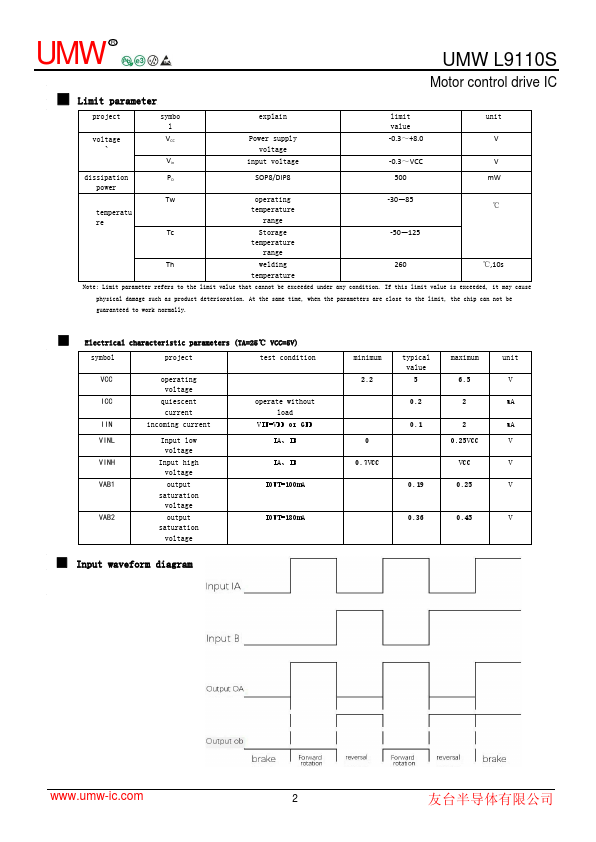

A Output pin Positive pole of power supply Positive pole of power supply B Output pin Power ground A Input terminal B Input terminal Power ground www.umw-ic.com 1 UMW R UMW L9110S Limit parameter Motor control drive IC project voltage ` symbo l VCC Vin explain Power supply voltage input voltage limit value -0.3～+8.0 -0.3～VCC unit V V dissipation PD power Tw temperatu re Tc Th SOP8/DIP8 operating temperature range Storage temperature range welding temperature 500 -30

Features

The power supply range is 2.2~6.5V V.
Low static working current.
Low saturation pressure drop.
product usage.
TTL/CMOS output level is compatible and can be directly connected with CPU I/O.
Few external devices.
Package: DIP8,SOP8.
Pulse electromagnetic valve drive.
Automobile motor drive.
Stepping motor drive.
Driving switch power tube.

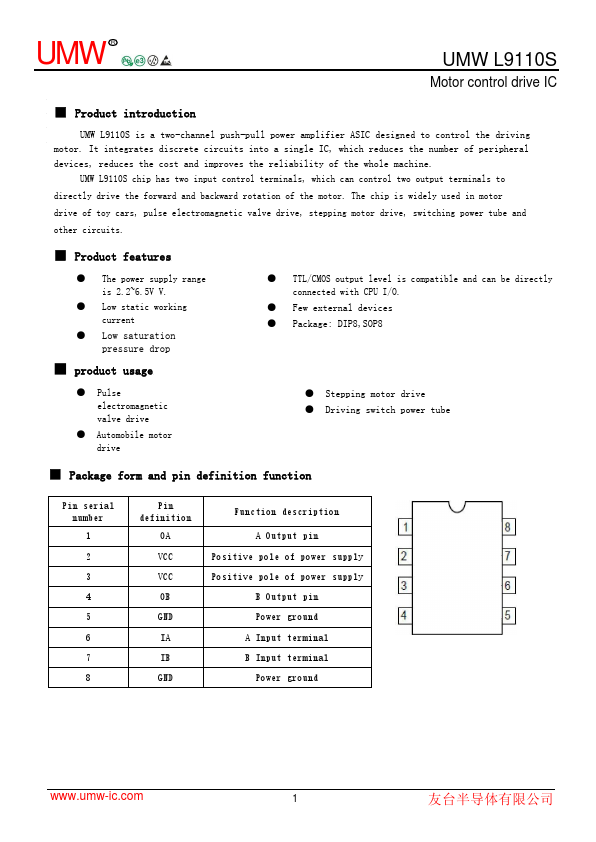

Package form and pin definition function Pin serial number 1 2 3 4 5 6 7 8 Pin definition.
