MOC3053, MOC3051 - Random-phase triac-driven optocoupler

Name: MOC3053
SKU: MOC3053-1587656

📥 Download Datasheet

MOC3053 Datasheet Preview — This datasheet PDF includes multiple part numbers: MOC3053, MOC3051. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MOC3053, MOC3051
Manufacturer	UMW
File Size	207.79 KB
Description	Random-phase triac-driven optocoupler
Datasheet	MOC3051-UMW.pdf
Note	This datasheet PDF includes multiple part numbers: MOC3053, MOC3051. Please refer to the document for exact specifications by model.

MOC3053 Product details

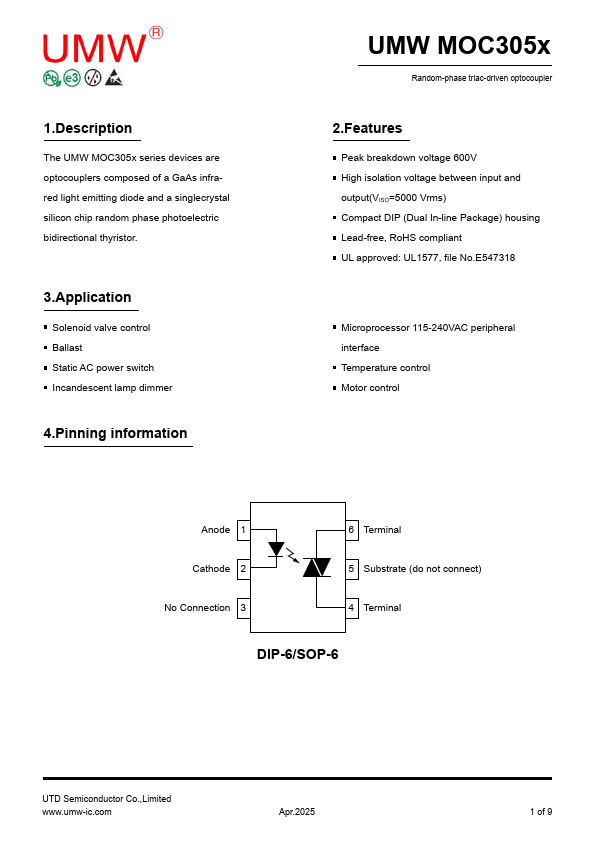

Description

The UMW MOC305x series devices are optocouplers composed of a GaAs infrared light emitting diode and a singlecrystal silicon chip random phase photoelectric bidirectional thyristor.

Features

Peak breakdown voltage 600V High isolation voltage between input and output(VISO=5000 Vrms) Compact DIP (Dual In-line Package) housing Lead-free, RoHS compliant UL approved: UL1577, file No. E547318 Microprocessor 115-240VAC peripheral interface Temperature control Motor control Anode 1 Cathode 2 No Connection 3 6 Terminal 5 Substrate (do not connect) 4 Terminal DIP-6/SOP-6 UTD Semiconductor Co. ,Limited www. umw-ic. com Apr.2025 1 of 9 www. umw-ic. com UMW MOC305x Random-phase triac-driven op.
