SN65176B

Multipoint RS-485/RS-422 Transceivers

SN65176B Features

* 1

* 23 Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422.

* Small Outline (SOIC) Package Option Available for Minimum Board Space.

* 22 ns Driver Propagation Delays.

* Single +5V Supply.

* 7V to +12V Bus Common Mode

SN65176B General Description

The SN75176B / SN65176B is a high speed differential TRI-STATE®bus/line transceiver designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to *7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outp.

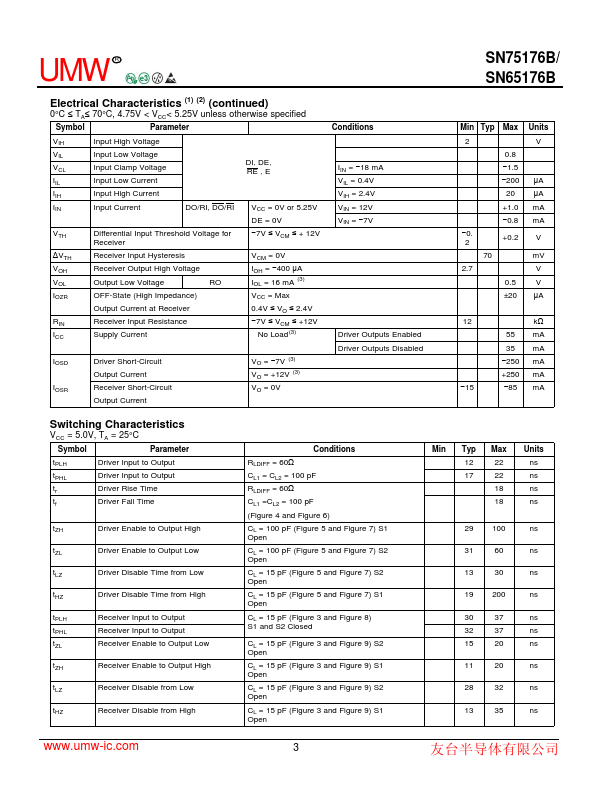

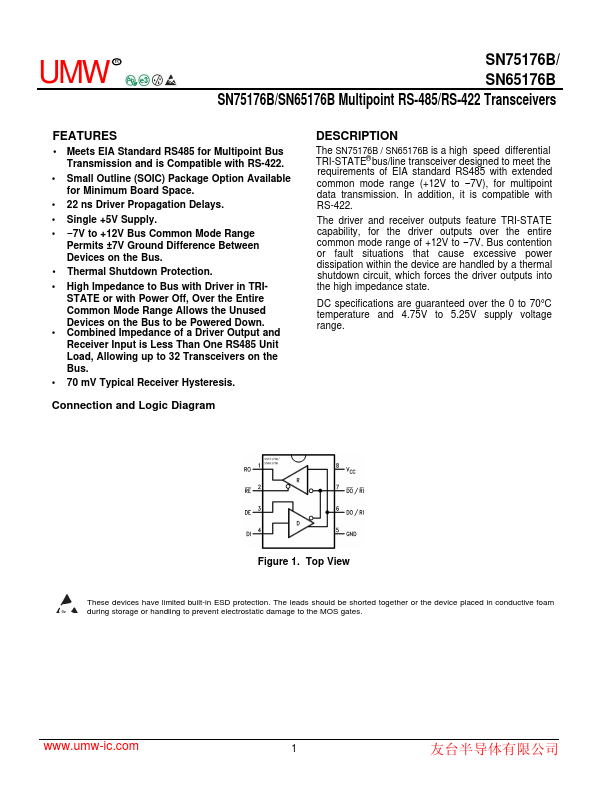

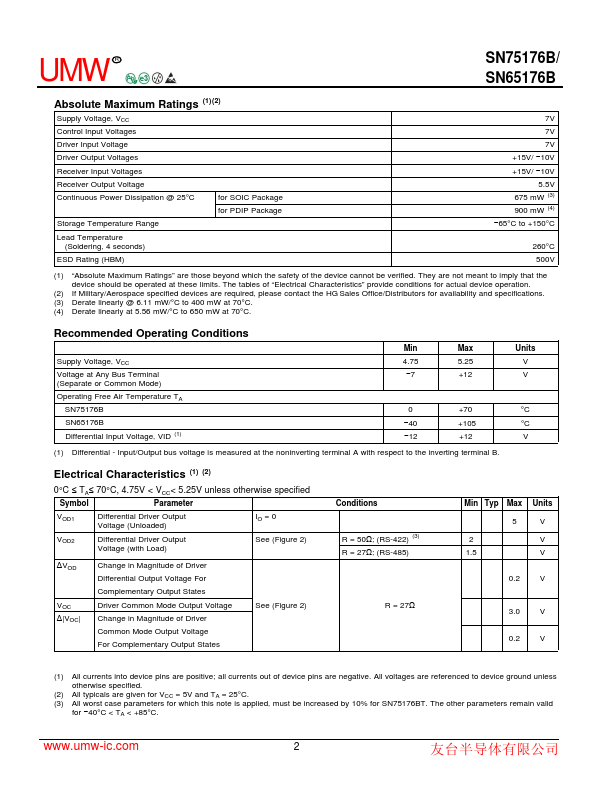

SN65176B Datasheet (372.09 KB)
