UTC3525 - REGULATING PWM IC

UTC3525 Datasheet Preview — Preview of UTC3525 PDF

Datasheet Details

Part number	UTC3525
Manufacturer	UMW
File Size	691.81 KB
Description	REGULATING PWM IC
Datasheet	UTC3525-UMW.pdf

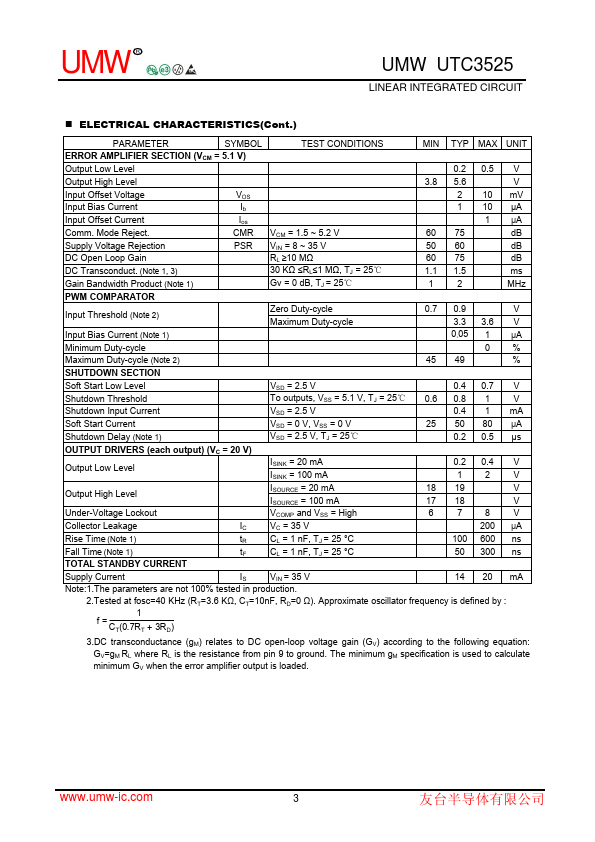

UTC3525 Product details

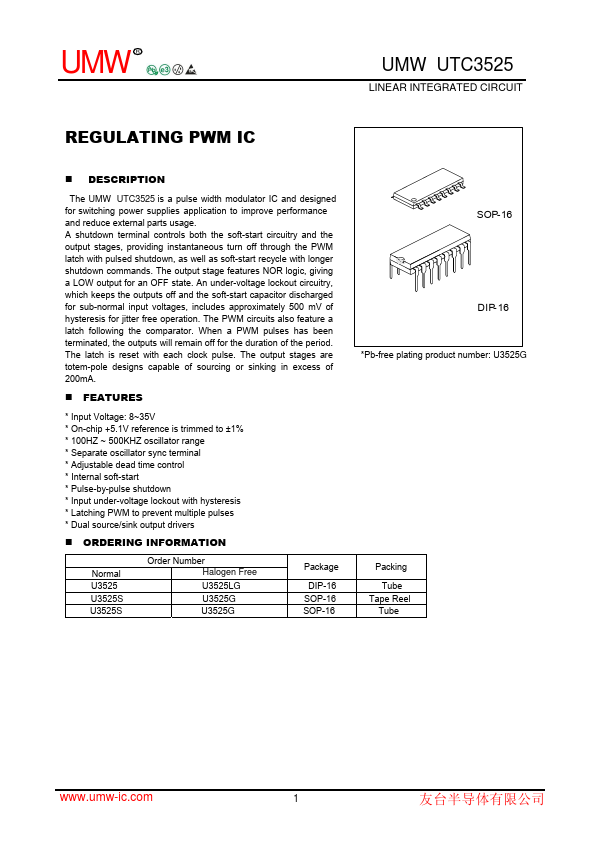

Description

The UMW UTC3525 is a pulse width modulator IC and designed for switching power supplies application to improve performance and reduce external parts usage.

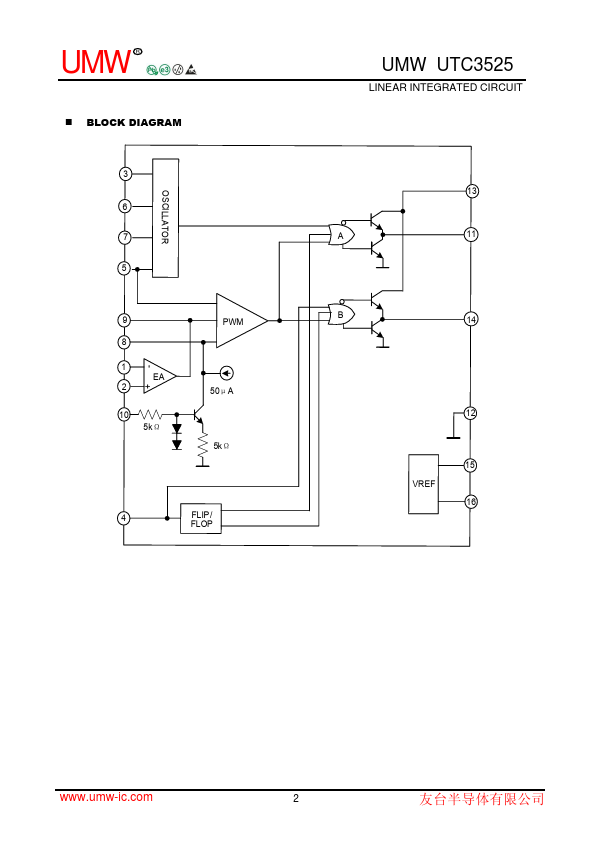

Features

NOR logic, giving a LOW output for an OFF state. An under-voltage lockout circuitry, which keeps the outputs off and the soft-start capacitor discharged for sub-normal input voltages, includes approximately 500 mV of hysteresis for jitter free operation. The PWM circuits also feature a latch following the comparator. When a PWM pulses has been terminated, the outputs will remain off for the duration of the period. The latch is reset with each clock pulse. The output stages are totem-pole designs.
