57HS1405-XXNE Datasheet - UMot

57HS1405-XXNE Hybrid Linear Stepper Motor

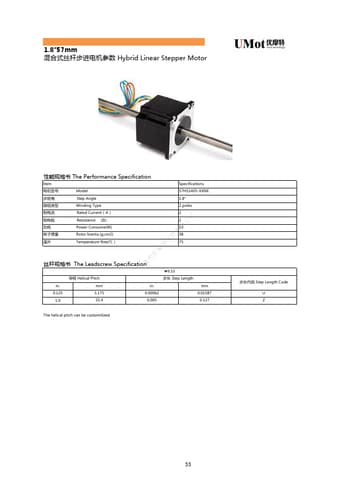

1.8°57mm Hybrid Linear Stepper Motor The Performance Specification Item Model Step Angle Winding Type Rated Current（A） Resistance (Ω) Power Consume(W) Rotor Inertia (g.cm2) Temperature Rise(℃ ) Specifications 57HS1405-XXNE 1.8° 2 poles 2 2 13 38 75 The Leadscrew Specification Φ9.53 Helical Pitch Step Length in. mm in. mm 0.125 3.175 0.00062 0.01587 1.0 25.4 0.005 0.127 The helical pitch can be customilized. Step Length Code U Z 55 1.8°57mm.

57HS1405-XXNE-UMot.pdf

Preview of 57HS1405-XXNE PDF
57HS1405-XXNE Datasheet Preview Page 2

Datasheet Details

Part number:

57HS1405-XXNE

Manufacturer:

UMot

File Size:

416.83 KB

Description:

Hybrid linear stepper motor.
