U6205SC - Offline Current Mode PWM Power Switch

Product Overview

📥 Download Datasheet

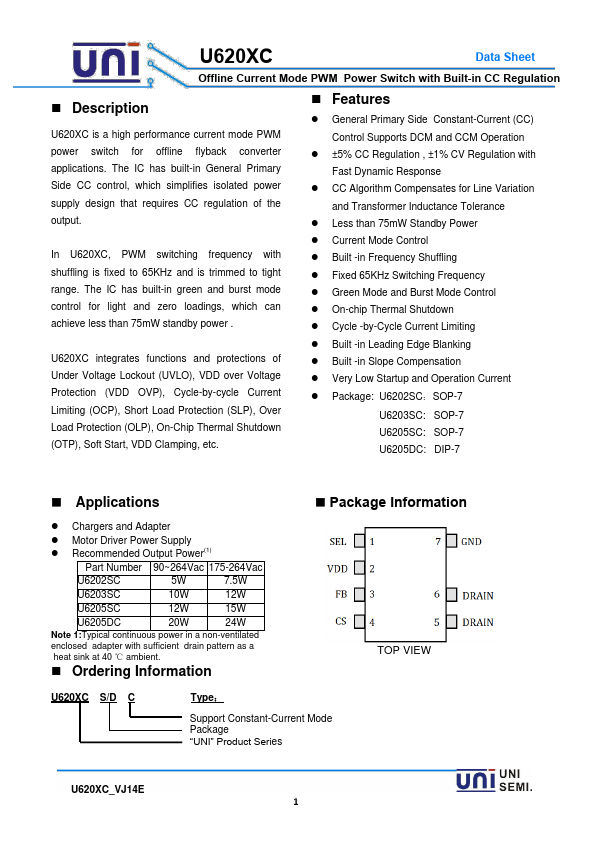

U6205SC Offline Current Mode PWM Power Switch by UNI SEMI - Datasheet Preview — Datasheet preview – U6205SC

Datasheet Details

Part number	U6205SC
Manufacturer	UNI SEMI
File Size	1.27 MB
Description	Offline Current Mode PWM Power Switch
Datasheet	U6205SC Datasheet
Note	This datasheet PDF includes multiple part numbers: U6205SC, U6202SC. Please refer to the document for exact specifications by model.

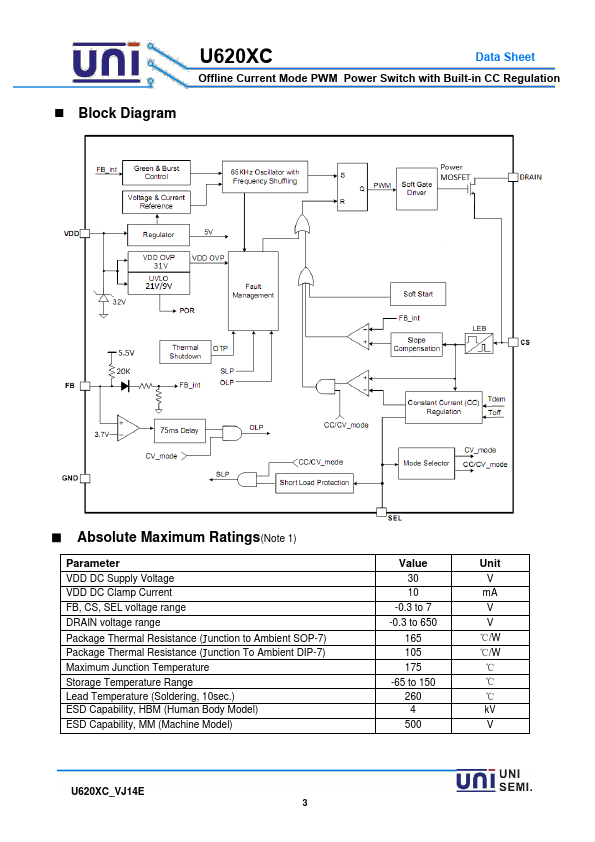

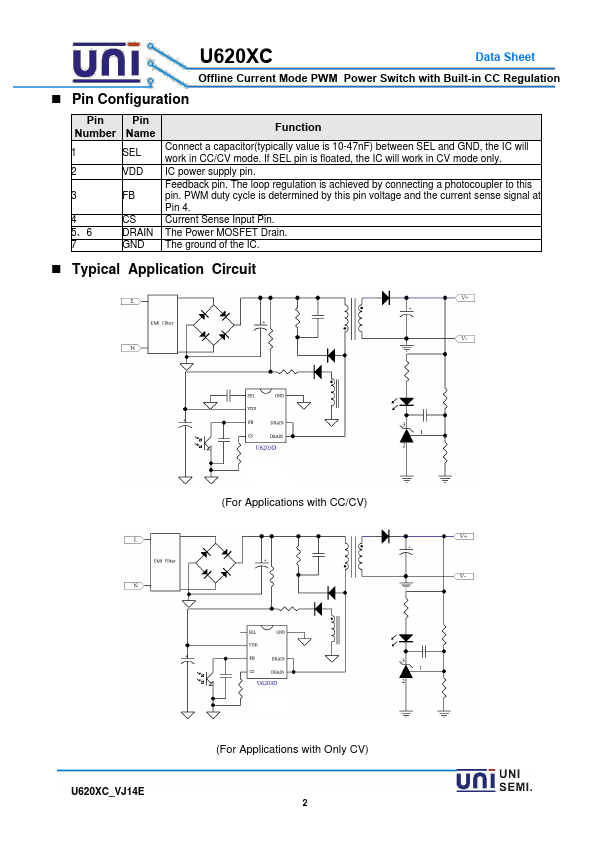

Additional preview pages of the U6205SC datasheet.

Product details

Description

U620XC is a high performance current mode PWM power switch for offline flyback converter applications.

Features

s.
General Primary Side Constant-Current (CC) Control Supports DCM and CCM Operation.
±5% CC Regulation , ±1% CV Regulation with Fast Dynamic Response.
CC Algorithm Compensates for Line Variation and Transformer Inductance Tolerance.
Less than 75mW Standby Power.
Current Mode Control.
Built -in Frequency Shuffling.
Fixed 65KHz Switching Frequency.
Green Mode and Burst Mode Control.
On-chip Thermal Shutdown.
Cycle -by-Cycle Current Limiting U620X.
