P45N02LI Datasheet - UNIKC

P45N02LI MOSFET

P45N02LI N-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 25V 20mΩ @VGS = 10V ID 26A TO-251 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 Avalanche Current TC = 25 °C TC = 100 °C ID IDM IAS 26 16 70 13 Avalanche Energy L = 0.1 mH EAS 9 Power Dissipation TC = 25 °C TC = 100 °C Operating Junction & Storage Temperatur.

P45N02LI-UNIKC.pdf

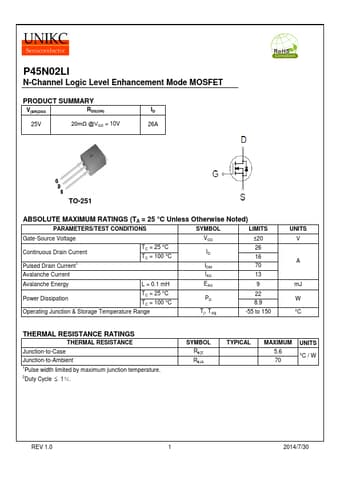

Preview of P45N02LI PDF
P45N02LI Datasheet Preview Page 2 P45N02LI Datasheet Preview Page 3

Datasheet Details

Part number:

P45N02LI

Manufacturer:

UNIKC

File Size:

493.96 KB

Description:

Mosfet.
