P45N03LTFG Datasheet - UNIKC

P45N03LTFG N-Channel MOSFET

P45N03LTFG N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) ID 25V 20mΩ @VGS = 10V 36A TO-220F ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 25 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID 36 22 IDM 140 Avalanche Current IAS 53 Avalanche Energy L = 0.1mH EAS 140 Power Dissipation TC = 25 °C TC = 100 °C PD 42 .

P45N03LTFG-UNIKC.pdf

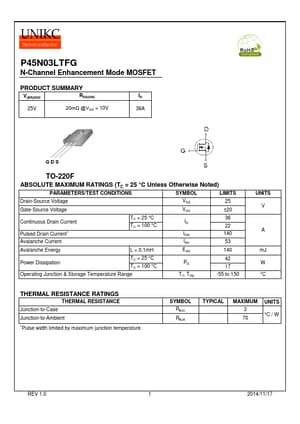

Preview of P45N03LTFG PDF
P45N03LTFG Datasheet Preview Page 2 P45N03LTFG Datasheet Preview Page 3

Datasheet Details

Part number:

P45N03LTFG

Manufacturer:

UNIKC

File Size:

464.96 KB

Description:

N-channel mosfet.
