bq2092 - Gas Gauge

UNITRODE

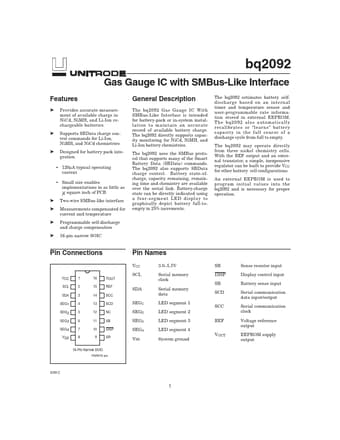

bq2092 Datasheet Preview — Preview of bq2092 PDF

Datasheet Details

Part number	bq2092
Manufacturer	UNITRODE
File Size	207.52 KB
Description	Gas Gauge
Datasheet	bq2092-UNITRODE.pdf

bq2092 Product details

Description

The bq2092 Gas Gauge IC With SMBus-Like Interface is intended for battery-pack or in-system installation to maintain an accurate record of available battery charge.

Features

Provides accurate measurement of available charge in NiCd, NiMH, and Li-Ion rechargeable batteries.
Supports SBData charge control commands for Li-Ion, NiMH, and NiCd chemistries.
Designed for battery pack integration - 120µA typical operating current - Small size enables implementations in as little as 3 4 square inch of PCB.
Two-wire SMBus-like interface.
Measurements compensated for current and temperature.
Programmable self.
