UM2122 Datasheet - UNIVERSAL MICROELECTRONICS

UM2122 (UM2100 Series) 2 Watt DC-DC Converters

UM2100 SERIES 2 Watt DC-DC Converters 24-Pin Dip Package High Efficiency (up to 80%) Regulated Outputs Pi Input Filter 3000 VDC Isolation Continuous Short Circuit Protection Conductive EMI Meets CISPR22 Class A SPECIFICATIONS All specifications are typical at nominal line full load, and 25°C unless otherwise noted. INPUT SPECIFICATIONS Input Voltage Range .………………….. 5V .……… 4.5-5.5V 12V …….……. 9-18V 24V .…….…. 18-36V 48V ……..

UM2122 Datasheet (266.73 KB)

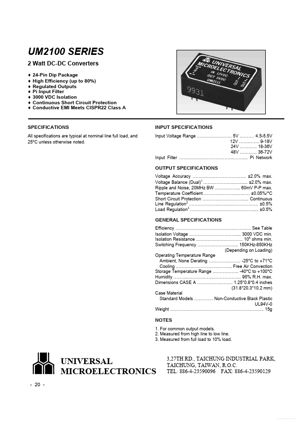

Preview of UM2122 PDF
UM2122 Datasheet Preview Page 2

Datasheet Details

Part number:

UM2122

Manufacturer:

UNIVERSAL MICROELECTRONICS

File Size:

266.73 KB

Description:

(um2100 series) 2 watt dc-dc converters.
