UT23014 DUAL T1/E1 TRANSFORMERS

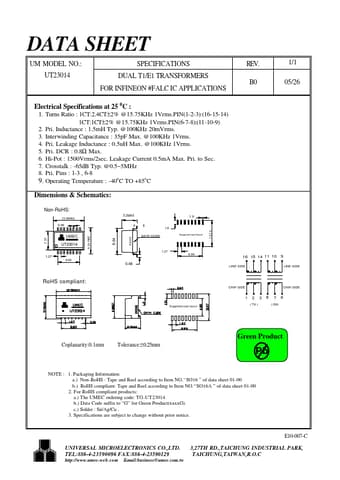

DATA SHEET UM MODEL NO.: UT23014 SPECIFICATIONS DUAL T1/E1 TRANSFORMERS FOR INFINEON #FALC IC APPLICATIONS Electrical Specifications at 25 0 C : REV. B0 1/1 05/26 1. Turns Ratio : 1CT:2.4CT±2% @15.75KHz 1Vrms.PIN(1-2-3):(16-15-14) 1CT:1CT±2% @15.75KHz 1Vrms.PIN(6-7-8):(11-10-9) 2. Pri. Inductance : 1.5mH Typ. @100KHz 20mVrms. 3. Interwinding Capacitance : 35pF Max. @100KHz 1Vrms. 4. Pri. Leakage Inductance : 0.5uH Max. @100KHz 1Vrms. 5. Pri. DCR : 0.8Ω Max. 6. Hi-Pot : 1500Vrms/2sec. Leakage Cu.
