UT2305-LV

P-CHANNEL MOSFET

UT2305-LV General Description

The UTC UT2305-LV is P-channel enhancement mode power MOSFET, designed in serried ranks. With fast switching speed, low on-resistance, favorable stabilization. Used in commercial and industrial surface mount applications and suited for low voltage applications such as DC/DC converters.
* SYMBOL .

UT2305-LV Datasheet (412.74 KB)

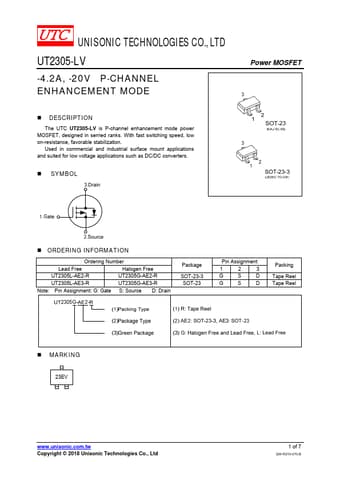

Preview of UT2305-LV PDF

Datasheet Details

Part number:

UT2305-LV

Manufacturer:

UTC

File Size:

412.74 KB

Description:

P-channel mosfet.
