HER801

The HER801 is 8A Glass Passivated High Efficiency Rectifiers designed by UPM.

Product Overview

UPM

Part number	HER801
Manufacturer	UPM
File Size	64.94 KB
Description	8A Glass Passivated High Efficiency Rectifiers
Datasheet	HER801-UPM.pdf

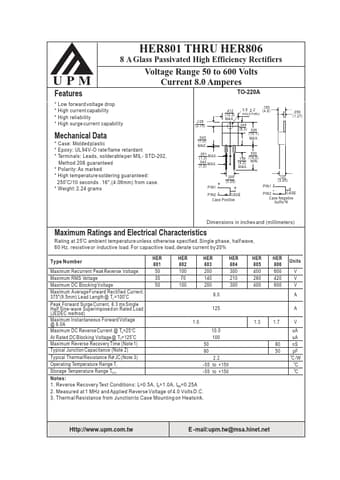

Additional preview pages of the HER801 datasheet.

Voltage Range 50 to 600 Volts Current 8.0 Amperes TO-220A.
Low forwardvoltage drop.
High currentcapability.
High reliability.
High surgecurrent capability Mechanical Data.
Case: Moldedplastic.
Epoxy: UL94V-O rateflame retardant.
Terminals: Leads, solderable per MIL- STD-202, Method 208 guaranteed.
Polarity:As marked.
High temperaturesoldering guaranteed: 250oC/10 seconds . 16",(4.06mm) from case.
Weight: 2.24 grams .108 (2.75) .040 (1.0) MAX.
