ZTB500E Through Hole Ceramic Resonators

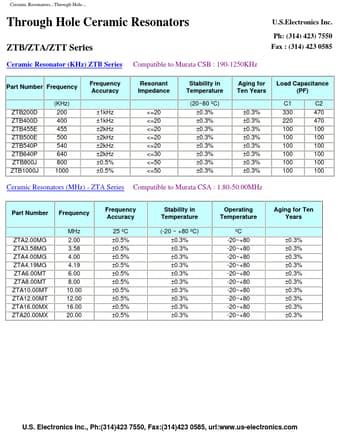

Ceramic ResonatorsThrough Hole Through Hole Ceramic Resonators ZTB/ZTA/ZTT Series Ceramic Resonator (KHz) ZTB Series Compatible to Murata CSB : 190-1250KHz U.S.Electronics Inc. Ph: (314) 423) 7550 Fax : (314) 423 0585 Part Number Frequency ZTB200D ZTB400D ZTB455E ZTB500E ZTB540P ZTB640P ZTB800J ZTB1000J (KHz) 200 400 455 500 540 640 800 1000 Frequency Accuracy ±1kHz ±1kHz ±2kHz ±2kHz ±2kHz ±2kHz ±0.5% ±0.5% Resonant Impedance <=20 <=20 <=20 <=20 <=20 <=30 <=50 <=50 Stability in Temperatur.

ZTB500E Datasheet (92.73 KB)
