01N30, N-CHANNEL POWER MOSFET

UNISONIC TECHNOLOGIES CO., LTD 01N30 Preliminary 0.1A, 300V N-CHANNEL POWER MOSFET * .
The UTC 01N30 is a N-channel mode power MOSFET using UTC’s advanced technology to provide customers with a minimum on-state resistance, low gate charg.

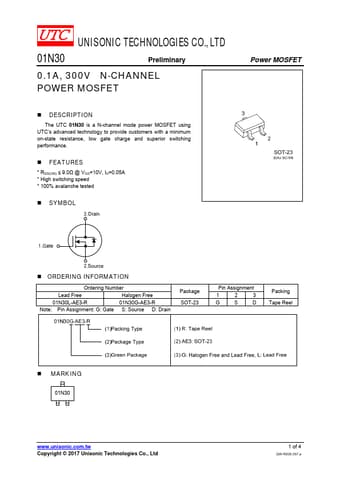

datasheet Preview Page 1 from Datasheet4u.com

01N30-UTC.pdf

01N30 Datasheet Preview — Preview of 01N30 PDF

Datasheet Details

Part number:

01N30

Manufacturer:

UTC

File Size:

210.92 KB

Description:

N-CHANNEL POWER MOSFET

Features

* RDS(ON) ≤ 9.0Ω @ VGS=10V, ID=0.05A
* High switching speed
* 100% avalanche tested
* SYMBOL Power MOSFET
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 01N30L-AE3-R 01N30G-AE3-R Note: Pin Assignment: G: Gate S: Source D: Drain Package SOT-23 Pin Assignme
