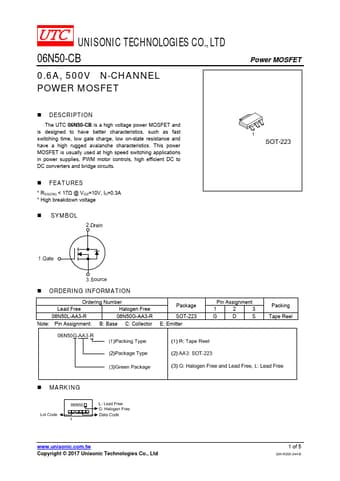

Part number: 06N50-CB
Manufacturer: UTC
File Size: 239.63KB
Download: 📄 Datasheet
Description: N-CHANNEL MOSFET
* RDS(ON) < 17Ω @ VGS=10V, ID=0.3A * High breakdown voltage
* SYMBOL
Power MOSFET
* ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
06N50L-AA3-R.
in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits.
* FEATURES
* RDS(ON) .
The UTC 06N50-CB is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics. This power MOSFET is usually used .
Image gallery
