1668

DUAL TONE MELODY XMAS LIGHT CONTROLLER

UTC

1668 Features

* 5 SCR outputs

* 2 Mode sequence trigger key

* Mode 0: 7 function Vol pin control volume

* Mode 1: 8 function Auto Volume control

* OPT “Floation” Mode 0 “VSS” Mode 1

* APPLICATION

* Xmas light control etc

* ORDERING INFORMATION Ordering Number Lead Free Halogen

1668 General Description

Pin No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Symbol S3 S4 S5 VOL OPT VSS TG Y X TE VDD BZ E2 E1 S1 S2 LED3 output. LED4 output. LED5 output. Volume control active in mode0. Mode option. Ground. Music switching. OSC resistor out. OSC resistor in. For test Power Music output. Tone quality process.

1668 Datasheet (146.14 KB)

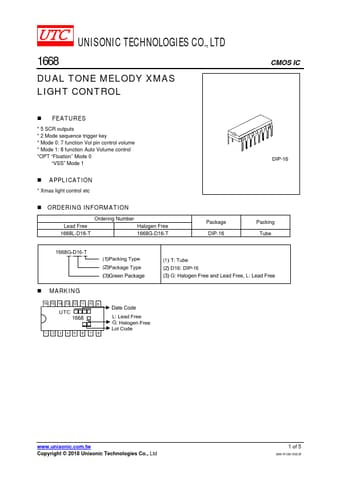

1668 Datasheet Preview — Preview of 1668 PDF

Datasheet Details

Part number:

1668

Manufacturer:

UTC

File Size:

146.14 KB

Description:

Dual tone melody xmas light controller.
