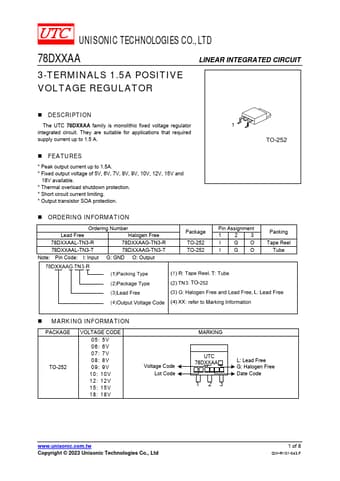

Part number:
78D05AA
Manufacturer:
UTC
File Size:
350.29 KB
Description:
3-terminals 1.5a positive voltage regulator.
* Peak output current up to 1.5A.
* Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V and 18V available.
* Thermal overload shutdown protection.
* Short circuit current limiting.
* Output transistor SOA protection.
* ORDERING INFORMATION Ordering Number Lead Free
78D05AA
UTC
350.29 KB
3-terminals 1.5a positive voltage regulator.
