78D05A 3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR

78D05A Description

UNISONIC TECHNOLOGIES CO., LTD 78DXXA LINEAR INTEGRATED CIRCUIT 3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR 1 TO-251 * .
The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit.

78D05A Features

* Peak output current up to 1A.
* Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.
* Thermal overload shutdown protection.
* Short circuit current limiting.
* Output transistor SOA protection. 1 TO-252-3 1 SOT-223
* ORDERING INFORMATI

78D05A Applications

* that required supply current up to 1 A. 1 TO-252

📥 Download Datasheet

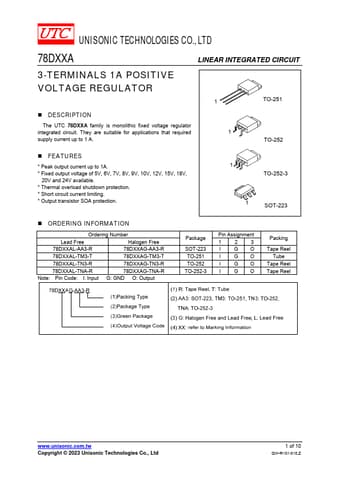

Preview of 78D05A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
78D05A
Manufacturer
Unisonic Technologies
File Size
353.42 KB
Datasheet
78D05A-UnisonicTechnologies.pdf
Description
3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR
