BAV199W DUAL SURFACE MOUNT LOW LEAKAGE DIODE

BAV199W Description

UNISONIC TECHNOLOGIES CO., LTD BAV199W DUAL SURFACE MOUNT LOW LEAKAGE DIODE * .
The UTC BAV199W is a dual surface mount diode providing the designers with extremely low leakage current.

BAV199W Features

* Extremely Low Leakage Current DIODE
* ORDERING INFORMATION Ordering Number BAV199WG-AL3-R Note: Pin Assignment: A: Anode K: Cathode BAV199WG-AL3-R (1) Packing Type (2) Package Type (3) Green Package
* MARKING Package SOT-323 Pin Assignment 123 K1 A2 A1K2 Packing Tape Reel (1)

📥 Download Datasheet

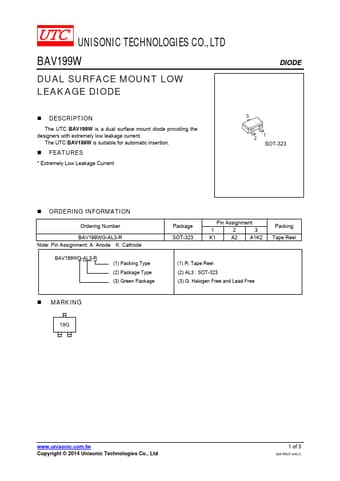

Preview of BAV199W PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAV199W
Manufacturer
UTC
File Size
115.46 KB
Datasheet
BAV199W-UTC.pdf
Description
DUAL SURFACE MOUNT LOW LEAKAGE DIODE
