BSS138 - N-CHANNEL MOSFET

UTC

📥 Download Datasheet

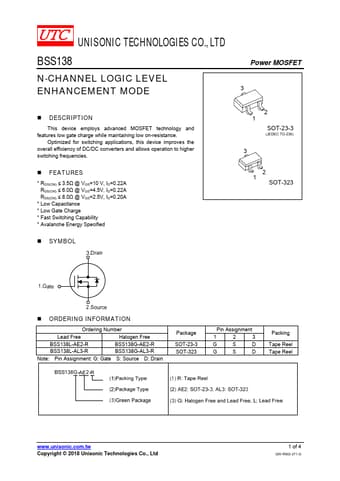

BSS138 Datasheet Preview — Preview of BSS138 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BSS138
Manufacturer	UTC
File Size	227.39 KB
Description	N-CHANNEL MOSFET
Datasheet	BSS138-UTC.pdf

BSS138 Product details

Description

This device employs advanced MOSFET technology and

Features

S.
RDS(ON) ≤ 3.5Ω @ VGS=10 V, ID=0.22A RDS(ON) ≤ 6.0Ω @ VGS=4.5V, ID=0.22A RDS(ON) ≤ 8.0Ω @ VGS=2.5V, ID=0.20A.
Low Capacitance.
Low Gate Charge.
Fast Switching Capability.
Avalanche Energy Specified.
SYMBOL 2 1 SOT-23-3 (JEDEC TO-236) 3 12 SOT-323.
